Aerodynamic Loads in Swing and Flight

Air loads belong in a golf model when their effect matters for the question and accuracy being investigated. The useful question is not whether drag is always negligible or always dominant. It is how a plausible aerodynamic load changes a measured-load estimate, a forward prediction, or the delivered ball flight, relative to the uncertainty and effect size that matter to the study.

That question connects several parts of the swing. Geometry determines local air-relative velocity and orientation. Fluid mechanics determines distributed tractions and moments. Joint and contact geometry maps those loads into the multibody equations. The chosen input policy and initial state determine the forward response. Impact then supplies the ball’s initial flight state; ball aerodynamics determines how that state develops. A force estimate at one point does not settle all of these questions at once.

Define the Relative Airflow

At a point on the moving body, let $v$ be its velocity in an inertial reporting frame and $w$ the undisturbed ambient-air velocity evaluated at that point. Define $v_r=v-w$. In a quasi-steady drag model, \[ F_D=-\tfrac12\rho C_D A\|v_r\|v_r. \tag{1}\] The force opposes motion relative to the air. It need not oppose velocity relative to the ground. Density $\rho$, reference area $A$, and coefficient $C_D$ require declared units and conventions. This expression represents the drag component; lift, side force, and an aerodynamic couple may be needed to represent the full load on an oriented or rotating clubhead.

The coefficient summarizes the effects of shape, orientation, Reynolds number, surface condition, and other features of the flow. It is not a universal constant belonging to a shape name. The NASA drag-equation explanation emphasizes that a measured coefficient and its reference area must be used together. Doubling the reporting area halves the coefficient for the same force. A fixed nominal area with an orientation-dependent coefficient is a valid convention; repeatedly changing area as well as using a coefficient already calibrated for that change can double-count the orientation effect.

For a ball, $A=\pi r_b^2$ is a common convention. For a cylinder in normal crossflow, projected area is diameter times exposed length. For a clubhead, state the area used in its calibration rather than assuming it always equals the clubface area. Its airflow incidence changes during the swing.

Quadratic Scaling and Its Limits

The force magnitude is \[ D=\tfrac12\rho C_D A v_r^2. \tag{2}\] It increases fourfold when speed doubles only if $\rho,C_D,A$ remain fixed. A momentum-flux argument motivates a scale $\rho Av_r^2$ in inertia-dominated flow. It does not prove that the coefficient is speed-independent. At low Reynolds number, a sphere’s Stokes drag is proportional to speed; expressing it using the quadratic formula gives $C_D=24/\mathrm{Re}$. Thus the same coefficient notation can encode different speed dependence.

Use \[ \mathrm{Re}=\frac{\rho\|v_r\|L}{\mu} \tag{3}\] to state the flow regime, with the relevant characteristic length $L$ and dynamic viscosity $\mu$. For illustrative values $\rho=1.225$ kg/m$^3$, $\mu=1.81\times10^{-5}$ Pa s, and speed 50 m/s, a 0.1 m head scale gives $\mathrm{Re}\approx3.4\times10^5$; a 0.01 m shaft diameter gives about $3.4\times10^4$. They are different flow problems. Reynolds number alone does not tell whether every boundary layer or wake is turbulent. Surface roughness, orientation, unsteadiness, and separation affect the result.

A quasi-steady coefficient approximation also needs the airflow to adjust sufficiently quickly relative to the changing motion. Rapid orientation changes, shaft-head interference, and wake history can require unsteady measurements or a more detailed fluid model. CFD is a way to calculate a candidate load model; mesh, time-step, turbulence-model, and experimental validation remain necessary.

A Force Estimate With a Clear Scope

Choose $\rho=1.225$ kg/m$^3$, $C_D=0.4$, $A=0.005$ m$^2$, and $\|v_r\|=50$ m/s as an illustrative coefficient-area-speed combination. Then \[ D=\tfrac12(1.225)(0.4)(0.005)(50)^2=3.0625\ {\rm N}. \tag{4}\] This is a conditional calculation, not a measured typical driver force. The same force results from $C_D=0.2$ with area $0.01$ m$^2$. Comparing coefficients across products without matching area, incidence, and flow conditions can be misleading.

In still air, the instantaneous translational drag power for this example is $-D\|v\|=-153.125$ W. If the same speed and load were maintained for 0.05 s, 7.65625 J would be transferred out through drag. Maintaining speed requires other loads to supply that work. This calculation is an energy scale, not a claim that a freely evolving club loses exactly that fraction of its speed. A 0.2 kg point-mass head at 50 m/s has translational kinetic energy 250 J; the complete club also has its distributed translational and rotational energy. A percentage loss for an actual swing requires integration along that swing.

Similarly, impulse is $\int F_D\,dt$, while work is $\int F_D^Tv\,dt$ with the relevant point velocity and any aerodynamic-couple power included. A peak force multiplied by total downswing duration does not reproduce either integral unless the corresponding simplifying assumptions hold. Comparing newtons to newton metres without a defined moment arm has no physical meaning.

Distributed Shaft Loads and the Actual Pivot

For a slender shaft with centerline $p(s,q)$, local velocity $v(s)$, and tangent unit vector $t(s)$, a simple normal-crossflow model uses \[ v_\perp=(I-tt^T)(v-w),\qquad dF_D=-\tfrac12\rho C_n d(s)\|v_\perp\|v_\perp\,ds. \tag{5}\] The coefficient $C_n$ is calibrated for the chosen crossflow model. This approximation omits axial skin friction and some three-dimensional or unsteady effects. Flexible motion enters through the actual centerline and local velocity; a coating or aerodynamic shape is not itself shaft compliance.

As an exactly specified toy geometry, take a straight uniform shaft of length $L$, rotating in a plane at signed angular speed $\omega$ about a fixed pivot on its extended axis. The near end is distance $a\geq0$ from that pivot, and $s\in[0,L]$ measures distance along the shaft. Its speed is $|\omega|(a+s)$. With still air and constant diameter $d$ and $C_n$, integration gives \[ D_{\rm shaft}=\tfrac12\rho C_n d\omega^2 \frac{(a+L)^3-a^3}{3}, \tag{6}\] \[ \tau_{D,\rm pivot}=-\tfrac12\rho C_n d\omega|\omega| \frac{(a+L)^4-a^4}{4}. \tag{7}\] The moment sign opposes the signed rotation. For $a=0$, the pivot is the shaft’s near end; it is not automatically the shoulder. A real golfer’s grip translates and rotates, so a single fixed-pivot shaft example does not represent all shoulder, wrist, and club angular speeds.

For $L=1.1$ m, $d=0.01$ m, $C_n=0.5$, $\rho=1.225$ kg/m$^3$, $\omega=25$ rad/s, and $a=0$, the resisting moment magnitude is 0.700595 N m. The near-end-pivot head speed in this same toy geometry would be 27.5 m/s. It would be inconsistent to combine that shaft calculation with a 50 m/s head while claiming one rigid fixed-pivot motion. A different motion model can produce different local speeds, but must specify how.

The generalized load contribution of a segment depends on its velocity Jacobian and the chosen output, not merely its speed or mass. Arm, torso, shaft, and head contributions should therefore be integrated with compatible kinematics. There is no universal 40/40/20 percentage split. The component that dominates force need not dominate a selected joint moment, work integral, or change in endpoint club speed.

From Air Loads to Generalized Loads

If point $i$ has velocity $v_i=J_{v_i}(q)\dot q$ and segment angular velocity $\omega_i=J_{\omega_i}(q)\dot q$, its aerodynamic force $F_i$ and couple $m_i$ about that same point contribute \[ Q_{\rm aero}=\sum_i\left(J_{v_i}^TF_i+J_{\omega_i}^Tm_i\right), \tag{8}\] with an integral replacing the sum for distributed loads. The formula follows from virtual power: \[ \dot q^TQ_{\rm aero}=\sum_i(v_i^TF_i+\omega_i^Tm_i). \tag{9}\] All components must use compatible frames and reference points. For one revolute coordinate, the generalized moment is the projection of the force-induced moment and couple onto that joint’s axis. A sum of three-vectors $r_i\times F_i$ is not a general $n$-coordinate load vector.

Use one consistent sign convention in the equations: \[ M\ddot q+h=Bu+p+Q_{\rm aero}+J_c^T\lambda. \tag{10}\] The drag force already contains its resisting sign. It enters the right-hand side as written; adding an extra minus sign there would reverse its action. Here $h$ contains the declared inertial bias and gravity, $p$ other constitutive loads, and $J_c^T\lambda$ the ideal closure reactions. Other external loads must also be included where appropriate.

For a regular fixed contact mode, eliminating reactions gives an acceleration map $a=f_a+KB u$, where \[ K=M^{-1}-M^{-1}J_c^T(J_cM^{-1}J_c^T)^{-1}J_cM^{-1}. \tag{11}\] An input-independent aerodynamic load contributes $KQ_{\rm aero}$ to the zero-input acceleration at a fixed state. It does not change $KB$ at that state merely because it depends on velocity. It can change the drift linearization, the trajectory, required effort, and reachable outcomes under bounded inputs. Those are different from changing the instantaneous input coefficient. Actively controlled aerodynamic surfaces or actuator-dependent flow would require a model that represents that additional input dependence.

The influence of drag on a norm ratio is also not fixed in sign. It is a vector addition that can reinforce or cancel other drift components. Sums of scalar load magnitudes do not establish a drift/control ratio, and a large norm ratio by itself is not a reachability or neural-strategy certificate.

Power, Frames, and System Boundaries

For the quasi-steady translational drag law with $C_D\geq0$, \[ F_D^Tv_r=-\tfrac12\rho C_DA\|v_r\|^3\leq0. \tag{12}\] It is zero at zero relative speed. In an inertial ground frame, \[ F_D^Tv=F_D^Tv_r+F_D^Tw. \tag{13}\] A tailwind faster than a body can push it forward and add body kinetic energy, while drag still opposes relative motion. For a one-dimensional illustrative law $F_D=-|v-w|(v-w)$, take body speed $v=1$ and wind $w=3$ in consistent units: $F_D=4$, ground-frame body power is 4, and relative-motion power is $-8$. The difference comes from energy exchange with the moving air.

In still air, for a declared whole mechanical system with conservative gravity and elastic storage included in $E=T+V_g+V_e$, a suitable balance is \[ \dot E=\dot q^TBu+P_{\rm aero}+P_{\rm other}-P_{\rm diss,other}. \tag{14}\] This assumes the remaining passive terms have been classified consistently and ideal stationary constraints do zero total power. Moving constraints, activation-dependent constitutive parameters, and additional stored-energy states require their own terms. Gravity is already in $V_g$; it is not counted again as an energy source in this total-energy derivative. Inertial coupling redistributes the kinetic-energy rate and is not an extra supply of energy.

Aerodynamic work is not metabolic expenditure. Isometric force, co-contraction, activation, and muscle efficiency can consume metabolic energy even when the net external mechanical work is small. A drag estimate therefore cannot explain range-session fatigue or diagnose effort by itself. Likewise, lower head drag may affect attainable speed under a specified swing policy; it does not by itself establish forgiveness on off-center impacts.

The Sign of an Inverse-Dynamics Correction

For $B=I$ and known reactions and other loads, rearrangement gives \[ u=M\ddot q+h-p-Q_{\rm aero}-J_c^T\lambda. \tag{15}\] There is no leading $M^{-1}$. The result has generalized-load units, not acceleration units. With the same known boundaries, omitting $Q_{\rm aero}$ gives $u_{\rm omit}=M\ddot q+h-p-J_c^T\lambda$, hence \[ u-u_{\rm omit}=-Q_{\rm aero}. \tag{16}\] For an isolated positive rotation with inertia 2 kg m$^2$, acceleration 3 rad/s$^2$, and resisting aerodynamic moment $-4$ N m, the true applied moment is 10 N m. Omitting drag gives 6 N m. The omission underestimates the positive applied moment in this example. With a different axis, motion, measured quantity, or signed load, the numerical bias can differ; a universal claim about every inferred joint torque is unjustified.

If hand or ground reactions are also unknown, changing the aerodynamic model can change the fitted allocation between inputs and reactions. Then the simple difference above cannot be used while silently assuming those unknown loads remain fixed. Analyze the joint balance and measurement map as in the inverse-dynamics chapter. Net hand force, net hand couple, net joint load, and individual muscle force are different inferred quantities.

The relative error must name its denominator. Near a zero crossing, a small absolute moment discrepancy can produce an arbitrarily large percentage. Sensitivity to aerodynamic uncertainty should be reported in physical units and compared with measurement uncertainty and the scientific effect being tested. Unsupported universal wrist, ankle, or shoulder error percentages do not provide an accuracy budget.

A Reproducible Forward Counterfactual

A forward zero-torque counterfactual (ZTCF) sets a declared effective input to zero and integrates from a specified complete state. It retains the stated aerodynamic and passive-load laws and recomputes them along the evolving branch. It is not obtained by recycling measured drag and reaction histories after the trajectory has changed. Zero joint input also does not mean zero muscle activation or no previously stored elastic energy.

Consider an illustrative pendulum, with angle $\theta$ measured from its stable bottom equilibrium, angular velocity $\omega$, inertia $I=2$ kg m$^2$, and gravity moment $-5\sin\theta$ N m. Choose quadratic drag coefficient $c\geq0$ in moment per squared angular-speed units. The zero-input model is \[ \dot\theta=\omega,\qquad 2\dot\omega=-5\sin\theta-c\omega|\omega|. \tag{17}\] Angular acceleration is $\dot\omega=\ddot\theta$; $\ddot\omega$ would be angular jerk. The signed drag law opposes either direction of rotation.

Starting at $\theta=0,\omega=0$ gives an exact equilibrium. No spontaneous swing appears. To investigate a falling motion, start instead at $\theta_0=\pi/2,\omega_0=0$. Its initial potential energy relative to the bottom is 5 J. With \[ E=\omega^2+5(1-\cos\theta),\qquad \dot E=-c|\omega|^3, \tag{18}\] the first bottom crossing without drag has speed $|\omega|=\sqrt5$, about 2.23607 rad/s. A speed of 85 rad/s would require 7225 J of kinetic energy for this inertia, which the stated zero-input initial state cannot supply.

For a second independent check, set $y(\theta)=\omega^2$ along the falling branch, where $\omega<0$. Write the gravity coefficient as $k=5$ N m and define $\kappa=2c/I$. With angles in radians, the resulting angle equation is \[ \begin{aligned} \frac{dy}{d\theta}-\kappa y&=-\frac{2k}{I}\sin\theta, \qquad y(\pi/2)=0,\\ y(0)&=\frac{2k}{I}\int_0^{\pi/2}e^{-\kappa s}\sin s\,ds. \end{aligned} \tag{19}\] For the specified inertia, $c=0.5$ gives $\kappa=0.5$ and $2k/I=5$ in the corresponding angular-speed units. It yields \[ y(0)=4-2e^{-\pi/4},\qquad |\omega_{\rm bottom}|\approx1.75731\ {\rm rad/s}. \tag{20}\] Numerically integrating angle, velocity, and accumulated dissipated work reproduces both bottom-crossing results:

Drag Coefficient	Bottom Time (s)	Bottom Speed (rad/s)	Dissipated Work (J)
$c=0$	1.17262	2.23607	0
$c=0.5$	1.26570	1.75731	1.91188

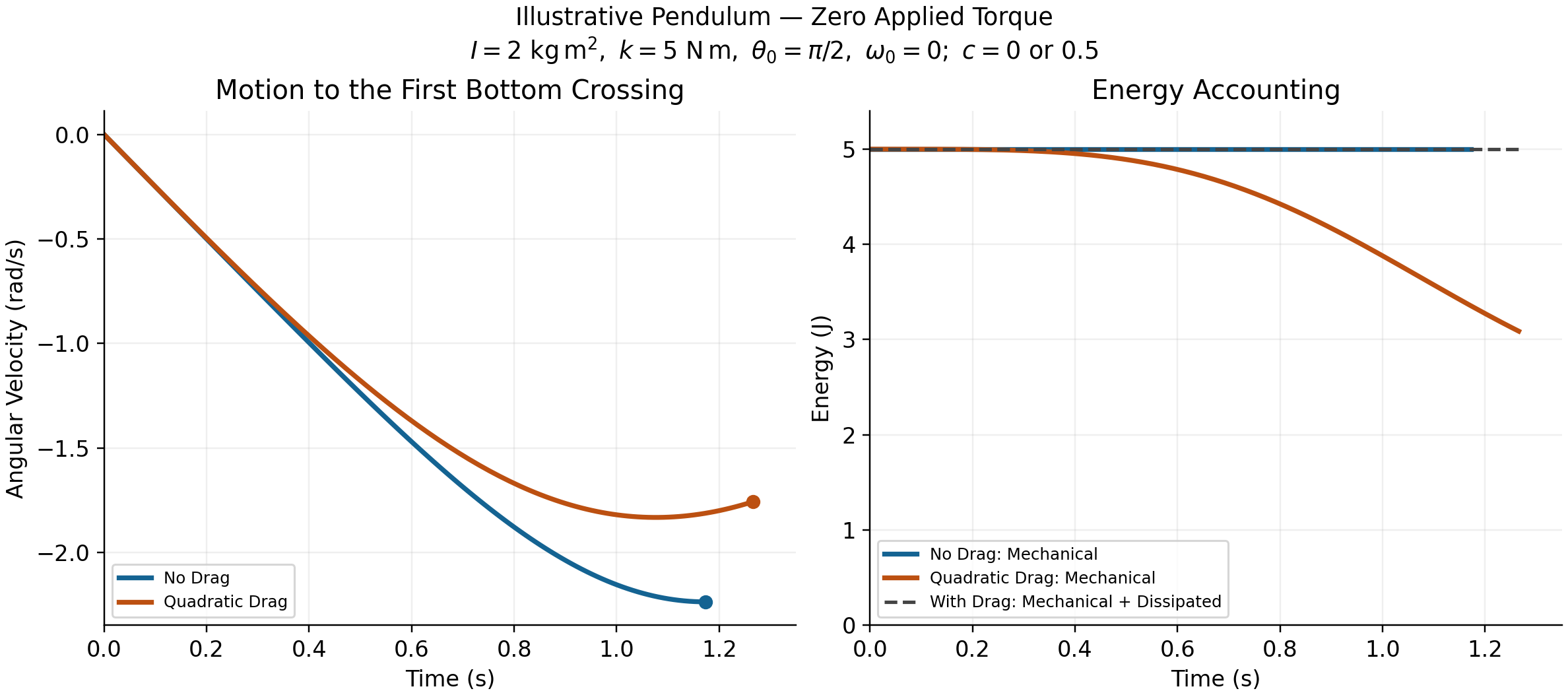

Both pendulums start from rest at a right angle above the bottom. Angular speed reaches 2.24 radians per second without drag and 1.76 with drag. Mechanical energy stays at 5 joules without drag and decreases with drag; mechanical energy plus dissipated work remains 5 joules. Curves end at the first bottom crossing. — Figure 1: Illustrative Zero-Input Pendulum Motion and Energy With and Without Quadratic Drag

The checks use adaptive integration with relative tolerance $10^{-10}$, absolute tolerance $10^{-12}$, and maximum step 0.01 s; they also test the energy identity and the independent angle integral. These parameters are reproducible numerical settings, not evidence that the pendulum represents a measured golf swing. It omits the multisegment geometry, real initial motion, muscle and tissue states, and club mechanics that a golf investigation needs.

In this one-coordinate still-air example, energy loss lowers speed at the same bottom angle. With drag, the speed maximum occurs before the bottom: along the falling branch, angular acceleration becomes zero when $5\sin\theta=c\omega^2$, and the resisting drag remains nonzero at the bottom. Thus a comparison of bottom-crossing speeds is not a comparison of both branches’ peak speeds. It does not prove a universal ordering of every segment’s speed at a fixed time in a coupled golfer. Changed timing and configuration can redistribute energy and alter endpoint outcomes. Report whether branches are compared at the same time, a matched event, or a matched configuration. Differences between already diverged trajectories also do not reconstruct instantaneous applied torque; the inverse-dynamics chapter gives an explicit counterexample to that inference.

Ball Flight Connects the Swing to the Outcome

At impact, club motion, impact location, contact mechanics, and ball properties jointly establish launch position, velocity, and spin. Aerodynamics then changes the flight. A swing study that predicts clubhead speed has not automatically predicted carry distance or dispersion. Conversely, a launch-monitor endpoint does not uniquely reconstruct the golfer’s joint loading.

For a simplified spherical-ball flight model, let $v_r=v-w$ and use \[ m_b\dot v=m_bg+F_D+F_L,\qquad \dot r=v. \tag{21}\] The drag law uses ball-specific $C_D$ and area conventions. A quasi-steady lift model uses the scalar component $\tfrac12\rho C_LA\|v_r\|^2$, with a signed coefficient and a stated lift direction. For ordinary transverse-spin Magnus lift, a candidate direction is $(\omega_b\times v_r)/\|\omega_b\times v_r\|$. Handle zero cross product explicitly. Coefficients calibrated for spin perpendicular to the flow should not be applied to arbitrary spin-axis angles without an appropriate extension. Spin decay requires an aerodynamic moment law; constant spin is a separate approximation, not a consequence of the translational equation.

A usual transverse-spin parameter is \[ S=\frac{r_b\|\omega_b\|}{\|v_r\|}. \tag{22}\] For illustrative radius 0.02135 m, speed 50 m/s, and transverse spin 200 rad/s, $S=0.0854$. A coefficient cannot be inferred from that number alone without its Reynolds number, ball geometry, surface condition, and calibrated relation. Report the chosen ball’s dimensions and mass rather than mixing approximate radii and masses from different examples.

Dimples can promote boundary-layer transition and delay separation in relevant flow regimes, reducing pressure drag despite additional skin friction. Their benefit depends on Reynolds number, dimple geometry, spin, and surface condition; there is no universal constant coefficient or fixed percentage range gain. The primary wind-tunnel study Bearman and Harvey, Golf Ball Aerodynamics (1976) provides evidence about tested configurations, not a coefficient table for every ball or driver. A smooth sphere’s drag coefficient also changes across flow regimes; labeling a single value as its universal laminar coefficient is incorrect.

Backspin changes lift and may also change drag. Depending on launch speed, angle, spin, coefficient curves, and environment, adding spin can increase or decrease carry. Lift perpendicular to relative velocity does not directly do work in that relative frame, but changes the flight path, duration, and drag history. Height, carry, stopping behavior, and dispersion are different outputs. Neither lower drag nor higher lift alone establishes greater accuracy or stability.

Environment and Model Uncertainty

For dry ideal-gas air, $\rho=p/(R_{\rm air}T)$ with absolute temperature $T$. The NASA equation-of-state treatment explains the pressure, density, and temperature relation. At the same pressure, the density ratio between 35 and 15 degrees Celsius is \[ \frac{\rho_{35}}{\rho_{15}}=\frac{288.15}{308.15}\approx0.93510. \tag{23}\] That is a decrease of about 6.49 percent. Pressure, humidity, and viscosity changes need their own treatment; an altitude alone does not specify a day’s air density. A reference atmosphere is a model, not a local weather measurement. Lower density reduces both drag and lift for fixed coefficients and relative speed; the change in ball range requires solving the flight problem.

A 5 m/s headwind exactly opposite a 50 m/s point velocity changes relative speed to 55 m/s and, with all other factors fixed, raises drag magnitude by $(55/50)^2-1=21$ percent. During a swing the velocity direction changes; wind must be subtracted as a vector at each point, rather than adding a scalar headwind to every segment for the entire motion. Crosswind can change both incidence and the direction of aerodynamic force.

In a scalar coefficient model, away from zero speed and for small changes in the separately represented factors, the differential sensitivity is \[ \frac{\delta D}{D}\simeq \frac{\delta\rho}{\rho}+\frac{\delta C_D}{C_D} +\frac{\delta A}{A}+2\frac{\delta v_r}{v_r}. \tag{24}\] This is a first-order identity, not a rule for adding uncertainty variances. Covariances matter; $C_D$ and $A$ may be linked by calibration, and coefficient variation with speed adds its derivative when speed changes. Near transitions or rapidly changing orientation, local linear sensitivity can be inadequate. Propagate the joint parameter/measurement uncertainty through the quantity actually reported.

Choosing the Aerodynamic Model

A useful inclusion decision starts with a scientific output and a tolerance. For example, an aerodynamic-moment uncertainty of a fraction of a newton metre might be immaterial to one question and larger than the claimed effect in another. A universal five-percent threshold, a joint’s name, or calm weather cannot make that decision on their own.

Specify the measured or predicted output, system boundary, coordinate conventions, and tolerable discrepancy in physical units.
Begin with a transparent force and moment model. Record coefficient-area pairs, incidence and Reynolds-number ranges, air properties, wind, and the evidence supporting each parameter.
Use compatible segment velocities and map loads by virtual power. Check force and moment signs, zero-relative-speed behavior, units, and energy balance before interpreting the output.
Compare omitted, nominal, and plausible alternative aerodynamic models through the same inverse or forward analysis. Preserve the same input policy and initial state when comparing forward branches, or explicitly define a different intervention.
Check numerical convergence and compare predictions with independent measurements. Add aerodynamic couples, flexibility, wake interaction, or CFD-derived loading when the simpler model’s discrepancy matters for the question and the added detail is supportable.
Report the resulting sensitivity and remaining uncertainty. Treat a measured performance difference, a model prediction, an illustrative calculation, and a proposed design change according to their evidence.

This places aerodynamic loading within the broader investigation of the golf swing: it is a physical load that interacts with geometry, constrained dynamics, control policy, and impact conditions. Its importance is an output-dependent result to establish, rather than a fixed percentage or a proof that either muscles or passive dynamics must dominate.

On This Site

Impact Mechanics and Ball Flight — From launch conditions to trajectory under aerodynamic loads
Launch Monitor Technology — Measuring launch spin and speed that drag models must explain

Chapter Exercises

Reproduce the 3.0625 N example. Change the reporting area while preserving force; calculate the new coefficient.
Derive shaft force and moment for pivot offsets $a=0$ and $a=0.6$ m. Explain why a near-end pivot is not a shoulder model.
Derive generalized aerodynamic load from virtual power, including the single revolute-axis moment as a special case.
Verify the tailwind example in both velocity frames and identify the energy supplied by the moving air.
Reproduce the 10 versus 6 N m inverse example. Explain what changes when contact reactions are also unknown.
Verify the pendulum equilibrium, bottom-crossing speeds, and energy loss. Explain why peak speed can occur before the bottom.
Compute the temperature and headwind examples. Distinguish the factors held fixed from those that can change outdoors.
Compare ball flights with equal launch states and different coefficient curves. Explain why range does not identify prior muscle loading.
